Instrument Design

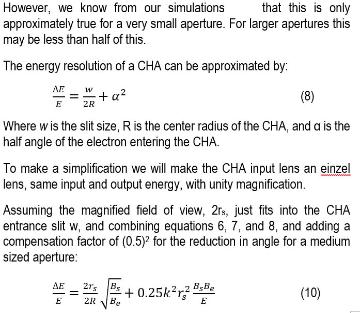

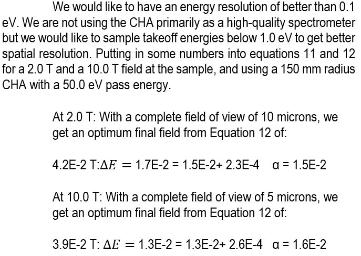

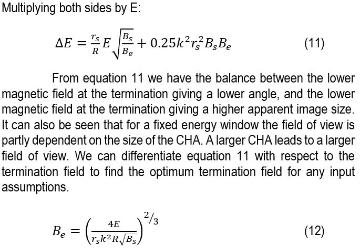

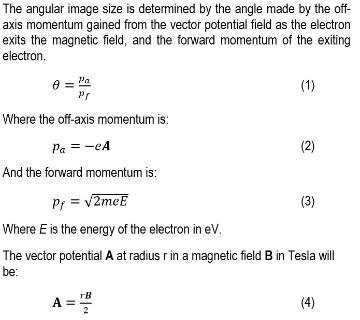

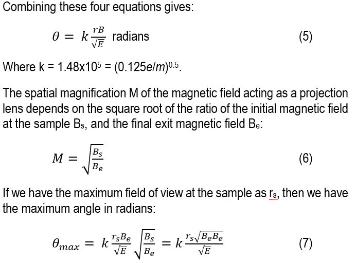

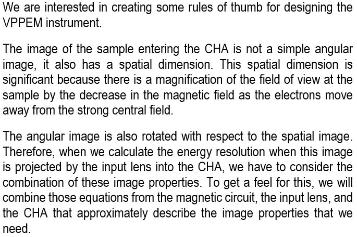

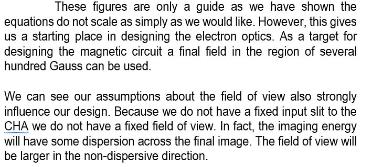

Rules of Thumb
These pages cover different aspects designing a VPPEM instrument
The optical properties of the magnet, the electostatic lenses, and the CHA interact making it
impossible to break down the system into parts. We need a guide to how to start a design.
Page 1
Page 2
